ACUT-160/200
ACUT-160 / 200 is designed for professional, heavy-duty applications. The ACUT power source supports manual cutting with high-frequency (HF) ignition, ensuring smooth arc starting and eliminating arc start defects. The ACUT series delivers excellent cutting performance on steel plates with thicknesses of up to 60 mm.
Features
• Excellent cutting performance: Concentrated energy delivers smooth, clean, and precise cut surfaces.
• Multiple protections: Ensure stable and reliable operation of the air compressor.
• CNC interface: Advanced CNC interface with multiple functions, making it highly popular and widely preferred.
• Outstanding cutting thickness: For carbon steel, edge starting is suitable up to 40 mm, while pierce starting is suitable up to 20 mm.
• Long-cable cutting torch: Supports cable lengths of up to 15 meters for extended reach.
• Easy arc starting: Supports a maximum arc starting height of 10 mm for reliable ignition.

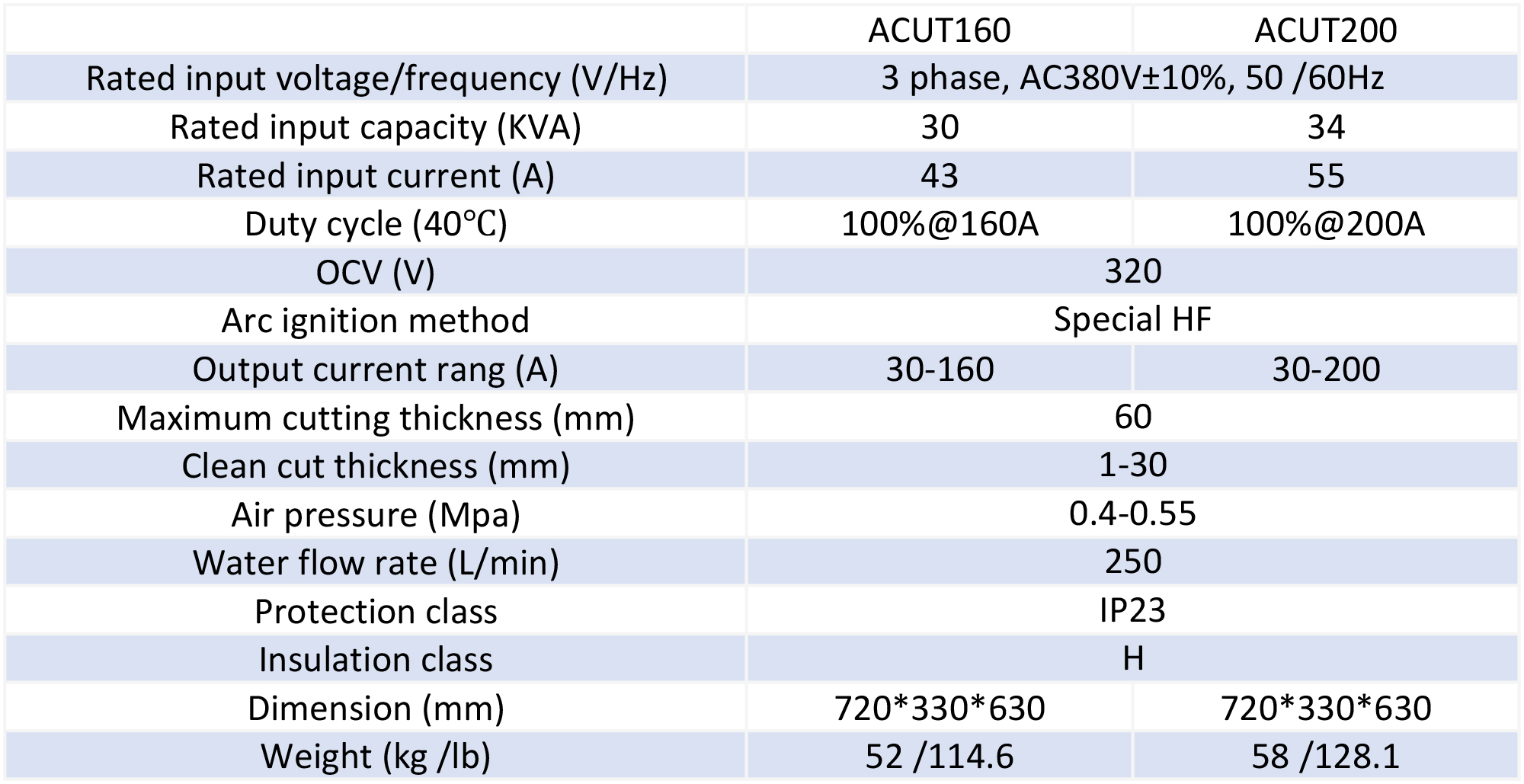

Specification
.jpg)
Application
No application images available.
Accessories
Standard accessories included:
• 1 × power source
• 1 × connected primary cable (length: 3 m)
• 1 × ground cable (length: 3 m)
• 1 × pressure-reducing valve
• 1 × plasma torch
• 1 × 20 L water cooler (ACUT200)
