AMIG-400/500PS PLUS
The AMIG-PS PLUS series is an advanced pulse MIG welding machine built on a 60 kHz high-speed inverter platform and an ARM control core, enabling precise droplet transfer control and significantly enhanced penetration, weld appearance, and arc stability.
It is equipped with a specially developed expert database for carbon steel, stainless steel, and other materials, delivering high efficiency, low spatter, excellent weld quality, and reduced operating costs across a wide range of applications.
Features
• High-frequency inverter: (60 kHz) with real-time fine droplet energy management delivers a concentrated, stiff, and stable arc.
• Stable arc: 45m welding cable to weld carbon steel under pulse mode, stable low-current welding.
• Precise current control: expands shielding gas applicability and ensures accurate consistency between electrode extension and welding current.
• Easy arc starting: freely switchable start modes ensures a high arc-starting success rate.
• Platformization design: pulse, double pulse, rapid pulse, deep penetration, CV and other advanced processes modules, even customized process modules are available.
•Twin-core control: twin 32-bit high-speed high-precision ARM processor, nanosecond-level responding speed.
• Stable wire feeding: A New twin closed-loop control system and high-torque permanent magnet motor ensures smooth, consistent wire delivery.
• One-key operation: save and recall 100 sets of parameters.
• Authorized personnel operation: access controlled via IC card for process management and quality traceability.
• ECO design.

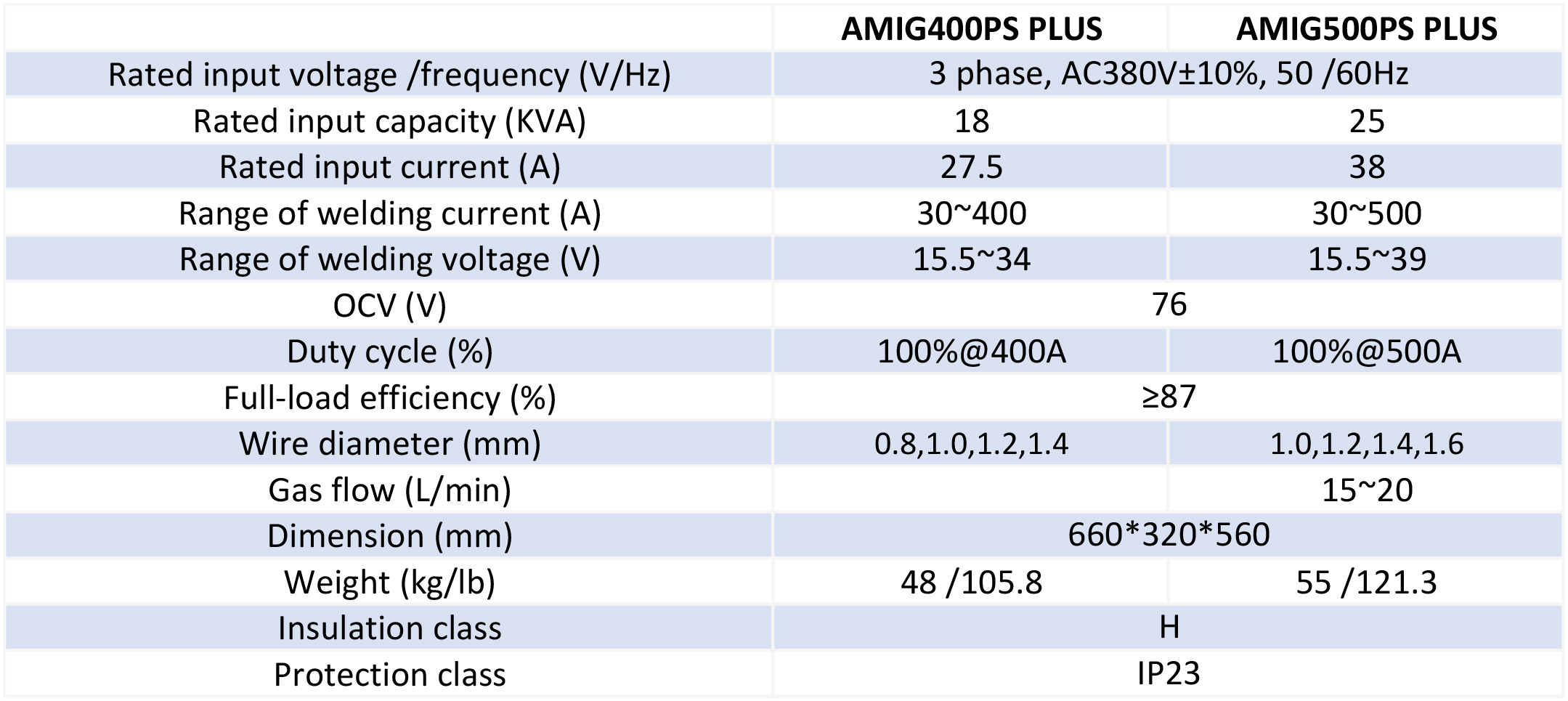

Specification
.jpg)
Application
No application images available.
Accessories
Standard accessories included:
• 1 × power source
• 1 × connected primary cable (length: 3 m)
• 1 × water cooling machine
• 1 × ground cable (length: 3 m)
• 1 × water-cooled or gas-cooled torch (length: 3 m)
• 1 × wire feeder with Europe connection
• 1 × trolley
• 1 × wire feeder cable (length: 2 m)
