ATIG-315/400/500P
The ATIG-P series features digital DC pulse TIG welders with MCU technology, suitable for both manual welding and automation. The DC pulse function reduces heat input on thin materials and enables faster weld pool solidification for uphill welding.
Features
• Multi-process welding: DC TIG / Pulse TIG / MMA.
• Digital MCU control: precisely management of the welding process.
• Sheet welding specialist: pulse mode for reduced heat input.
• Powerful pulse: up to 500 Hz frequency for deeper weld penetration.
• Remote control function: support for both digital and analog remote controllers..
• Multi-protection: system including short-circuit protection, coolant shortage protection, and more, with clear error code display.
• Compatible with a wire feeder (customized model available)

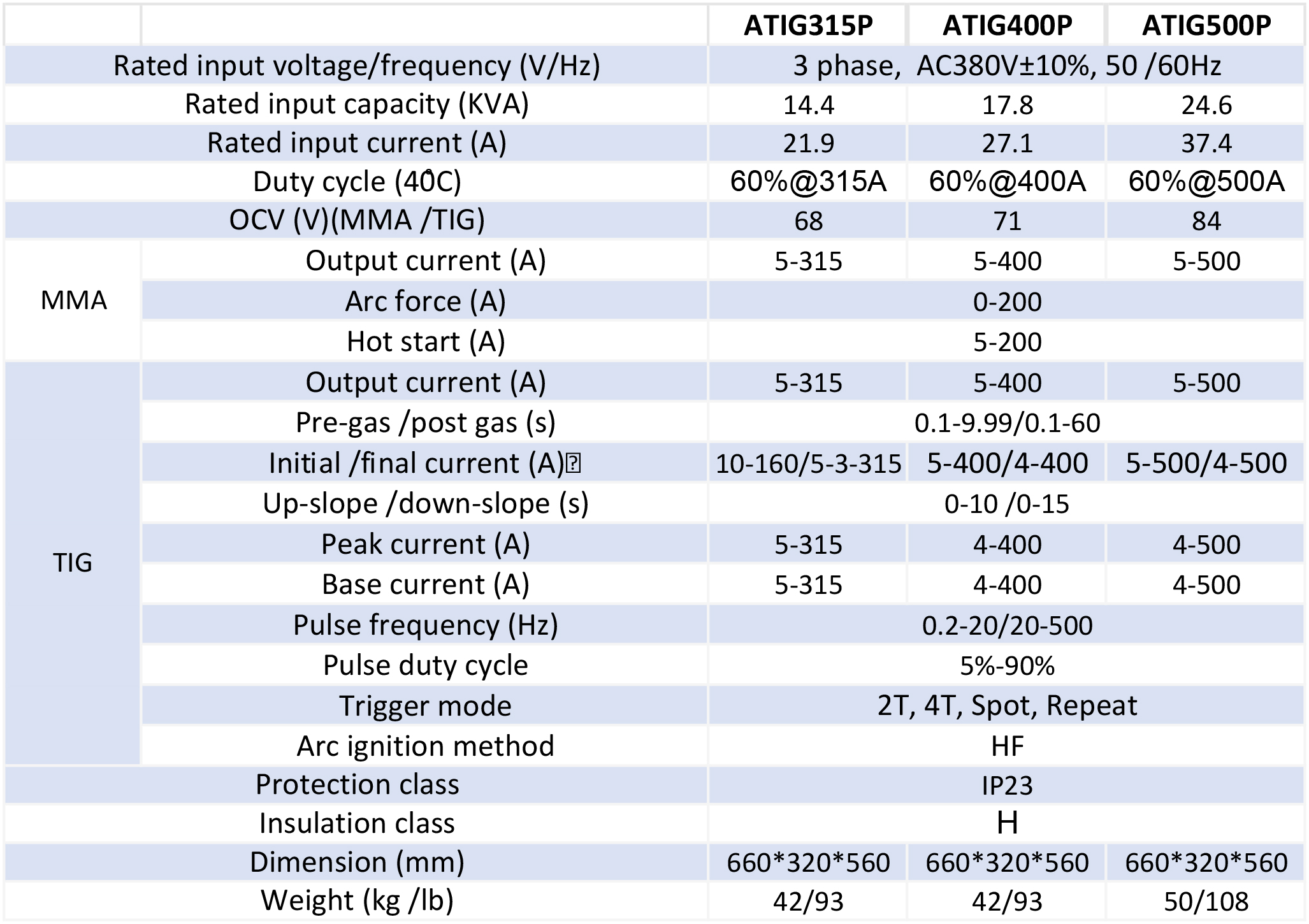

Specification
.jpg)
Application
No application images available.
Accessories
Standard accessories included:
• 1 × power source
• 1 × connected primary cable (length: 3 m)
• 1 × welding cable (length: 3 m) optional
• 1 × ground cable (length: 3 m) optional
• 1 × TIG torch (length: 3 m)
